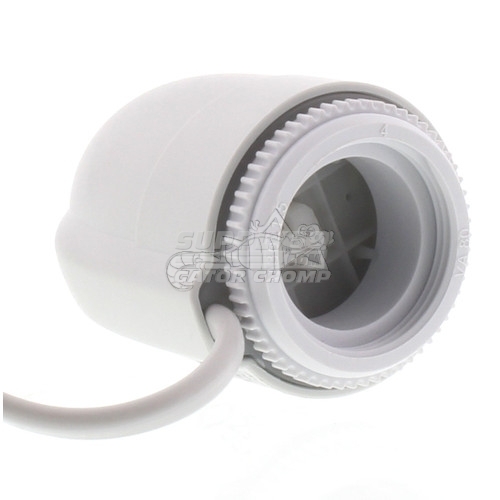

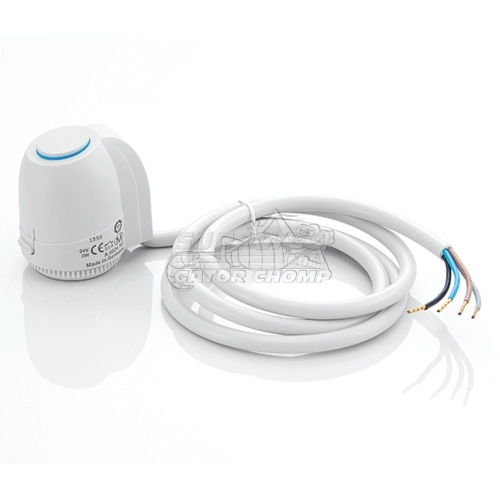

4 Wire Radiant Zone Valve Thermal Actuator

SKU: AC80102 Category:

Thermostatic Manifold Actuator valve for MF series stainless steel manifolds. 24V, 0.12A, 4-wire.
Operating temperature (max): 140F
Operating temperature (min): 32F
Features easy-to-install snap action mechanism.

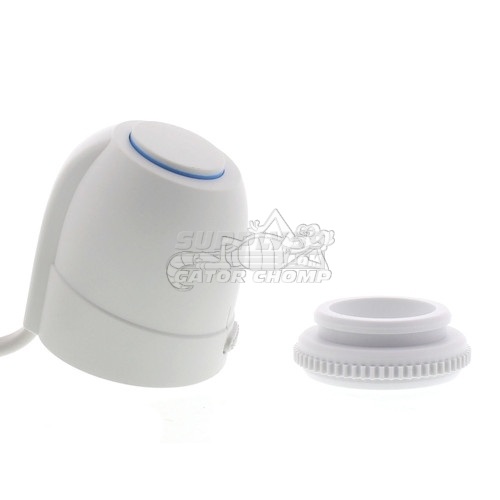

Comes with a manifold seat and 40″ long wire.

This actuator is designed to replace manual balancing valve on MF series manifold to provide electronic control of an individual zone (Loop).
Several actuators can be installed to achieve full control of the manifold.
Compatible with Taco ZVC controls and similar.

Installation:
1. Remove manual balancing valve by unscrewing it counter-clockwise (viewed from top).
2. Replace it with a white O-ring included in the box with actuator.
3. Snap on the actuator, wiring can be forward-facing or backward-facing for installation convenience.
4. Connect actuator wires to the zone valve outlets of the Taco ZVC panel (refer to ZVC manual for instructions).
